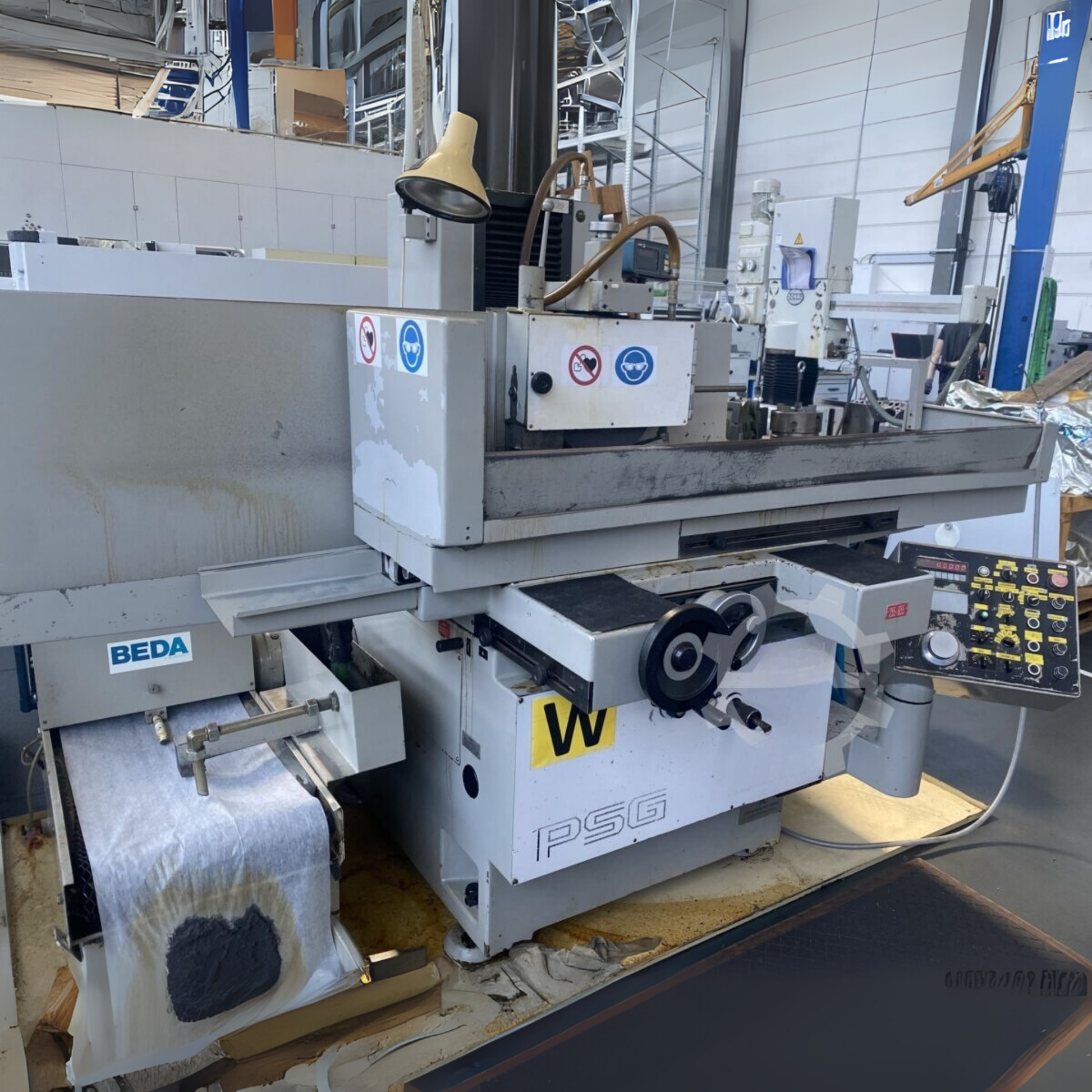

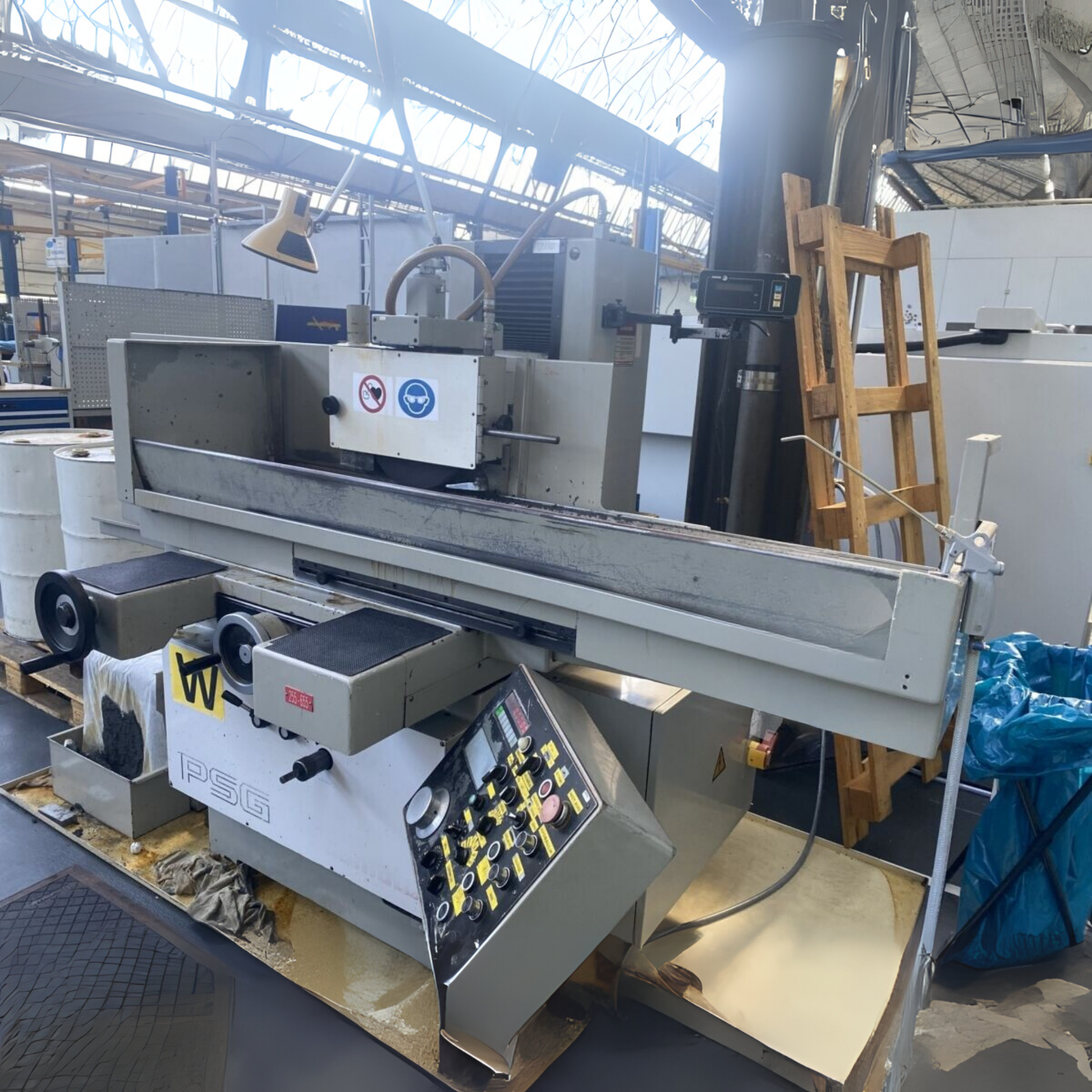

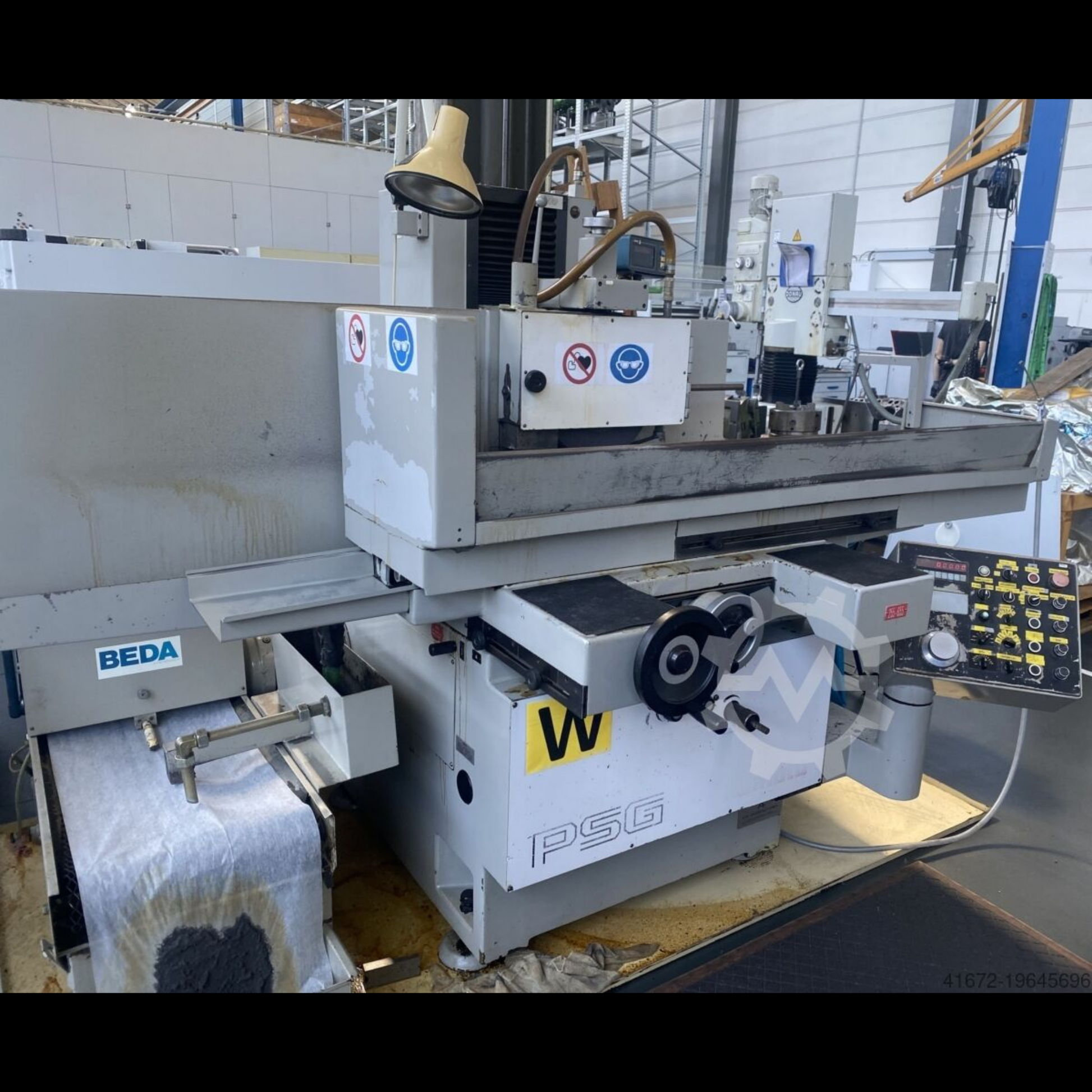

OKAMOTO PSG 63 UDX Surface Grinding Machine - Horizontal

Product code: 25016

Machine type: Surface Grinding Machine - Horizontal
Manufacturer: OKAMOTO
Model: PSG 63 UDX
Year of construction: 1990

grinding length 600 mm
grinding width 300 mm
table load 420 kg
weight of the machine ca. 2500 kg
--> Table magnet size: 600 x 300 mm
--> Grinding wheel size: 355 x 38 mm
--> Crossbeam: 750 x 340 mm
--> Maximum workpiece weight: 420 kg
--> Maximum height from table to spindle centre: 500 mm
--> Feed rate: 0.3 – 25 m/min
--> Spindle motor power: 3.7 kW
Pjbin R Esw Dvkao Dujpw
--> Machine dimensions: 2730 x 1910 x 1800 mm

Includes vertical height display, cross travel display, automatic
downward pull display, hydraulic movement

--> Accessories Various grinding wheels
--> Documentation
--> Coolant system
--> Electromagnetic chuck
